Dimension:13000mm ×2490mm×2860mm Loading Capacity: ≤60 Tons Axle: 13 T/16T Tire:12.00R22.5/ 315 80R22.5

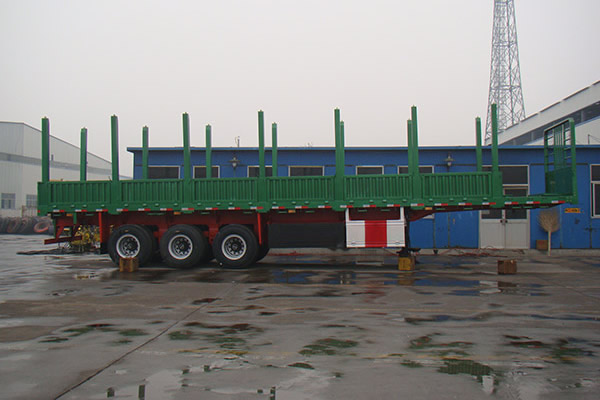

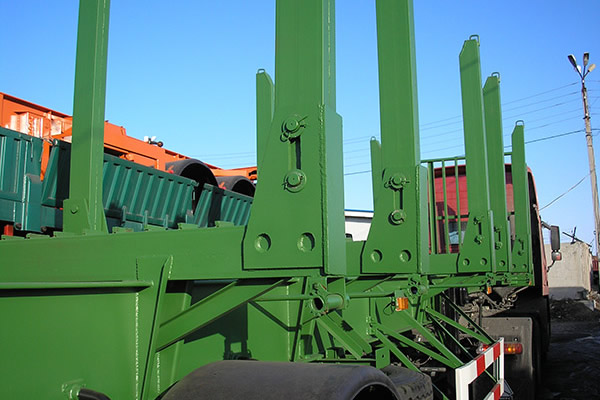

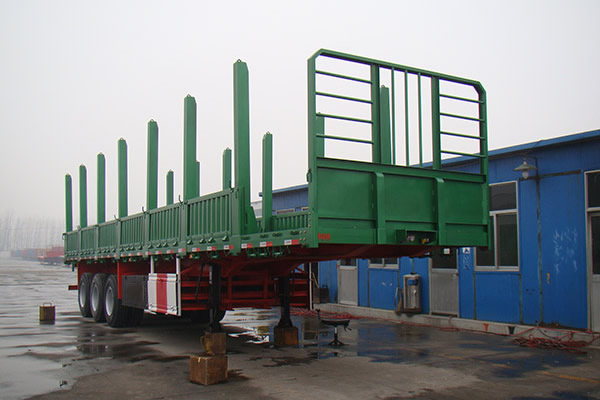

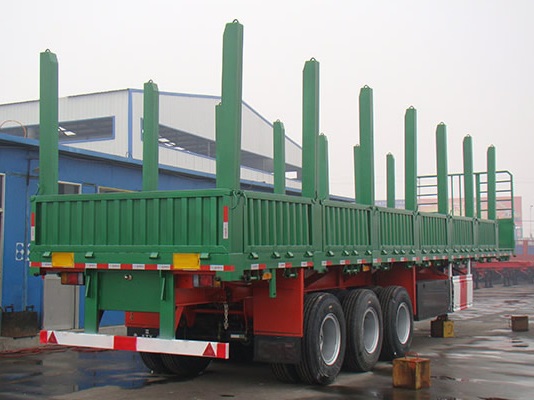

| Model | Timber Transport Semi Trailer |
| Dimension | 13000mm ×2490mm×2860mm(outside dimension ),12800×2300×1800mm (inside dimension) |
| Curb Weight | About 6.8-8.6T |
| Loading Capacity | ≤60 Tons |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand three axles |
| Rim | 9.00-22.5 |
| Tire | 12.00R22.5/ 315 80R22.5 |
|
Suspension
|
Mechanical suspension (German or American type)or air suspension (Chinese brand or BPW brand )
|
| King pin | JOST brand 2.0 or 3.5inch (bolted or welded type) |
| Support leg | JOST brand D200T or Chinese brand 28Tons (Double speed) |
| Main beam | Height: 500mm Upper plate: 14mm Middle Plate: 8mm,Bottom Plate is 16mm; Material: Q345B Steel |
| Side beam | 16mm or 18mm steel channel (Material: Q235steel ). |
| Side tube | 7 square tube on each side of trailer Tube size : 10×10mm |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (lifting type or twist Screw type) |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market ) |
| Voltage | 24V |
| Receptacle | 7-pin Socket (for 7 wire harness) |
| Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
