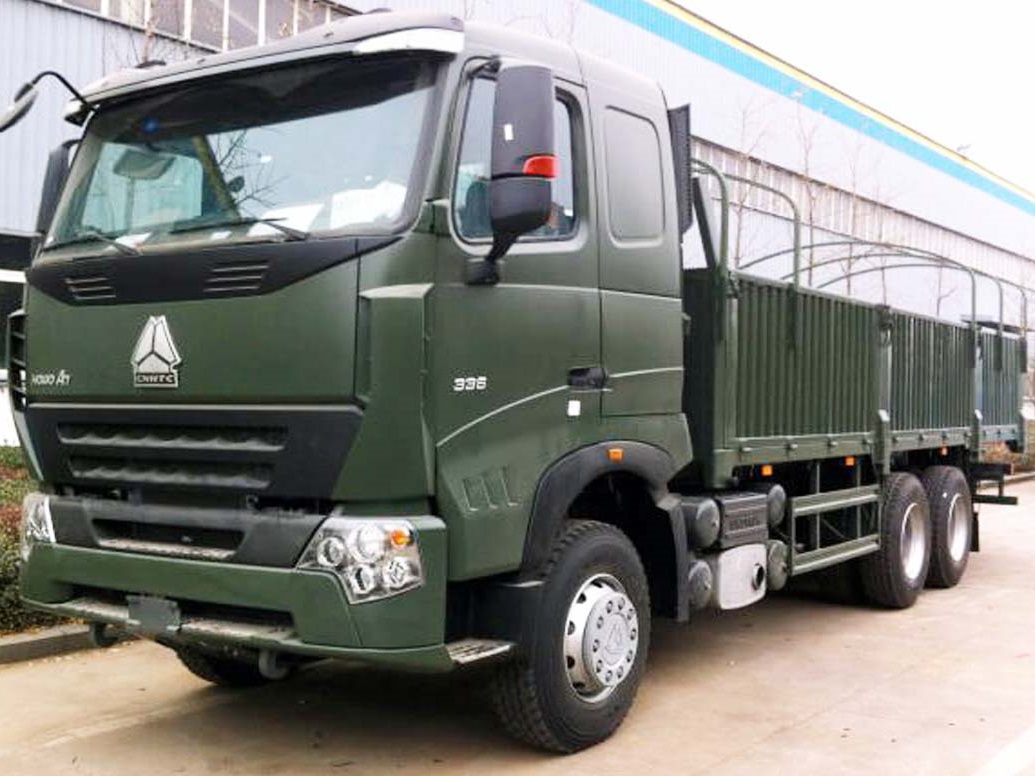

Driving Type:6x4 / 10 Wheels / 3 Axles Horse Power:336HP / 371HP / 420HP Transmission:HW19710, 10F & 2R Rear Axle:HC16, 2x16000 KGS
| Chassis Model | ZZ1257N4347N1,ZZ1257N4647N1,ZZ1257N5847N1,ZZ1257V4347N1,ZZ1257V4647N1,ZZ1257V5847N1 |
| Driving Type | 6X4 |
| Cabin | A7-W cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. A7-V–HOWOA7 high roof cabin. Basic configuration is with double sleeper. and others is similar to the HA7-W. |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371 HP;D12.42-20,420HP;WD615.69.336HP; Emission ：Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L /11.596L |
| Transmission | HW19710, 10F & 2R |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance; |
| Front Axle | HF9, 1×9000 KGS
Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 12.00R20(11), one spare tyre |
| Fuel Tank | 400L |
| Cargo Body | Length:7.1M,7.65M,9.3M;Width:2.3M;Height:0.6-1.5M |
| Overall Dimension | 10450*2500*3300 mm |
