| SINOTRUK HOWO 6×4 MIXER TRUCK SPECIFICATIONS |

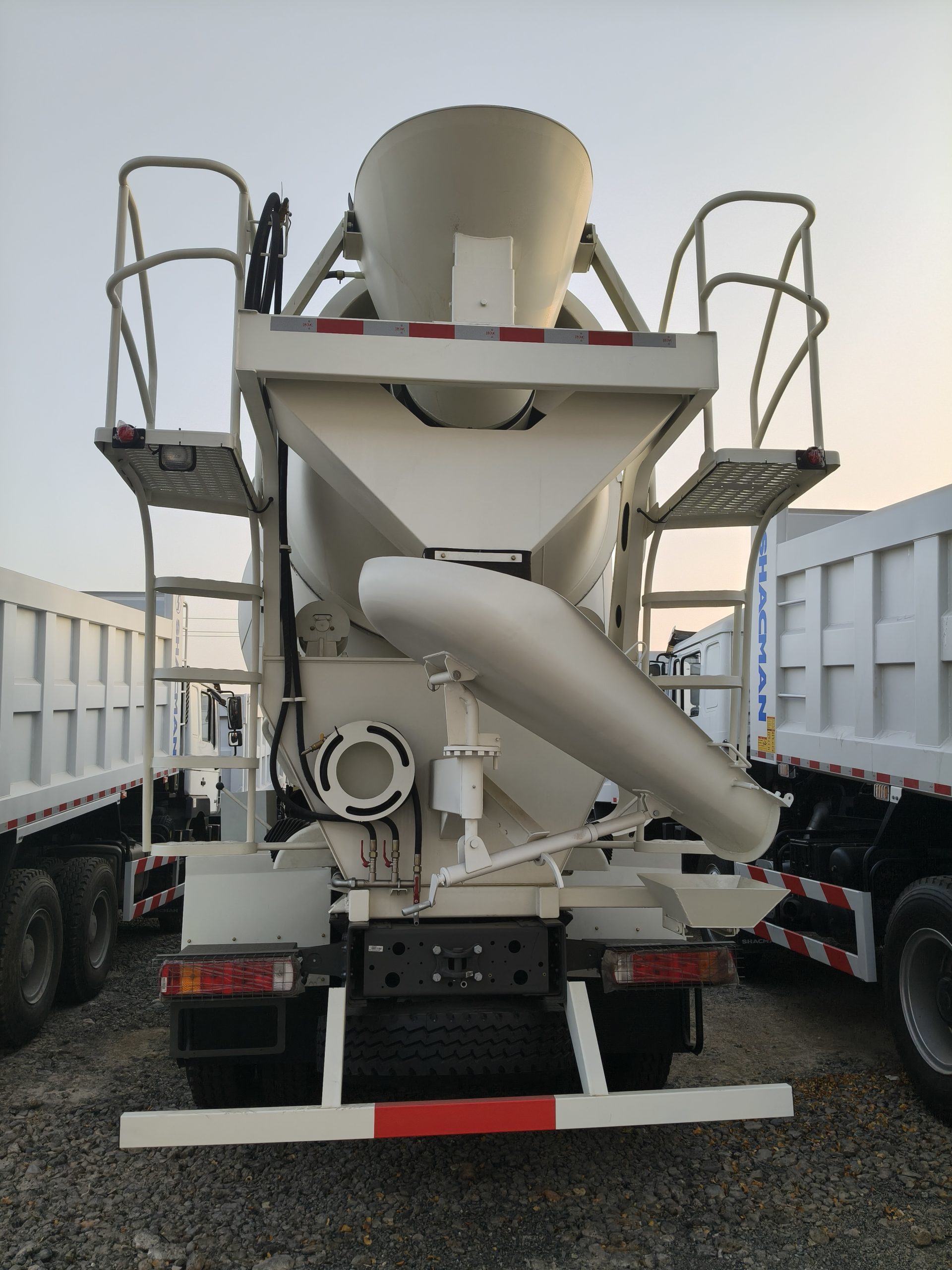

| Cubage |

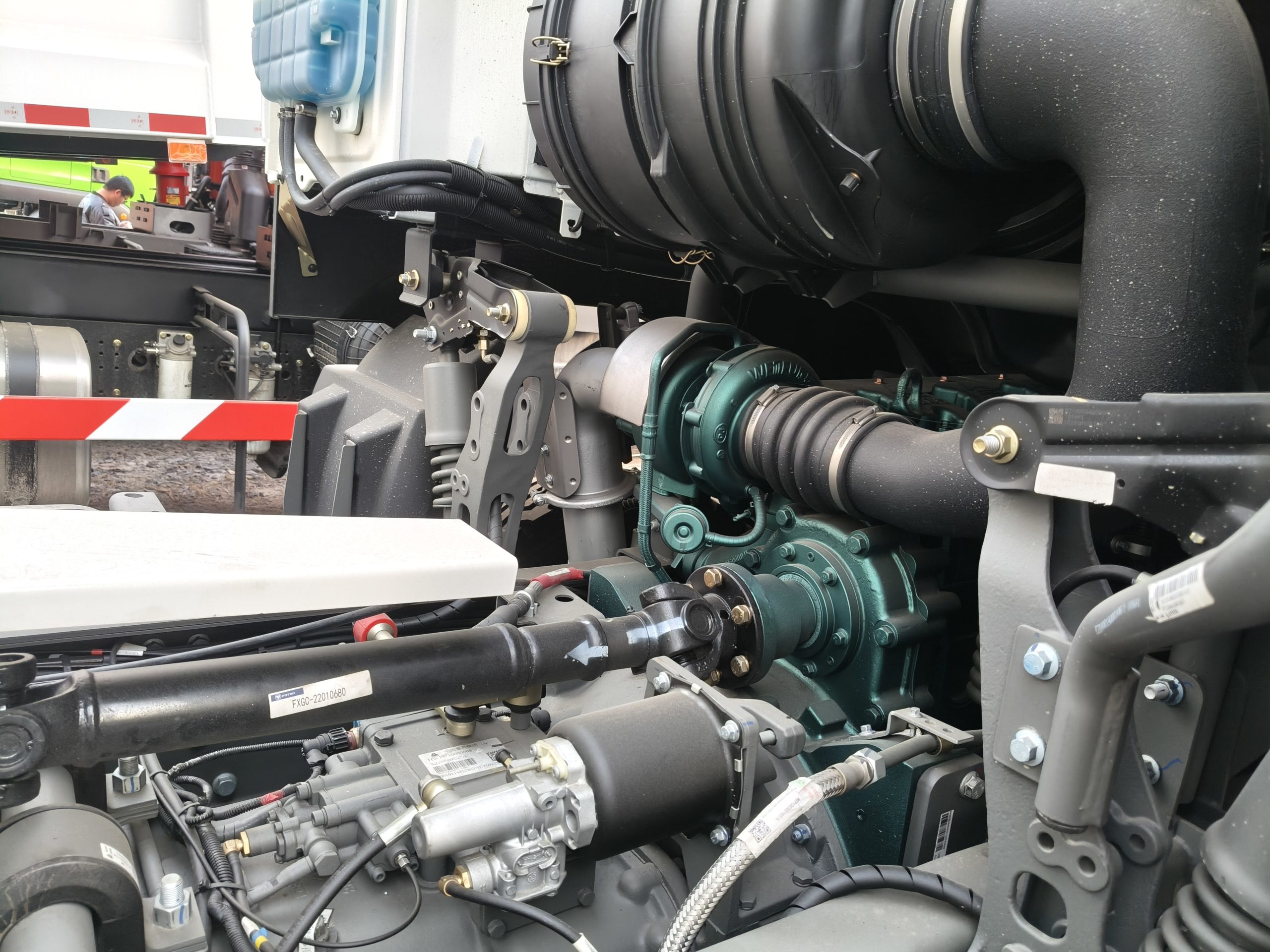

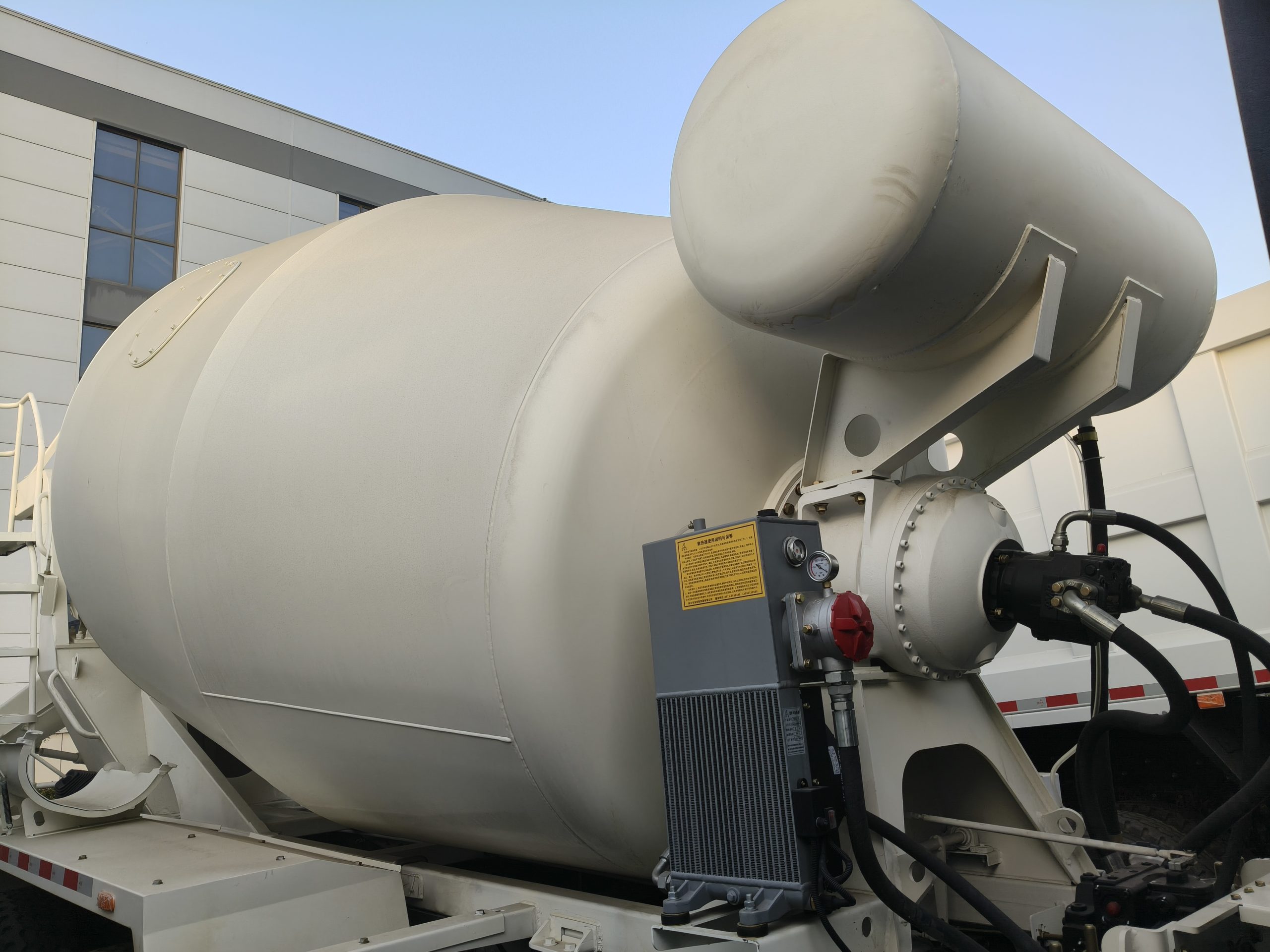

Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60) |
| Mixing Volume(M³):10m³ |
| Stuffing Volume(%):59.3 |
| Feeding Speed(M³/min):≥3 |
| Discharging Speed(M³/min):≤2 |
| Discharge Residue(%):≤0.2 |
| Slump Scope(mm):50~220 |
| Drum Speed( Min):0~16 |
| Water supply Syste:400L/Pneumatic |
| Drum Material:End 8/16MnR |
| Weight in kg |
Kerb weight (Kg) |
13800 |
| Gross vehicle weight (Kg) |
25000 |
| Dimension(mm) |
Length(mm) |
8915 |
| Width(mm) |
2550 |
| Height(mm) |
3950 |
| Wheel base (mm) |
3800+1350 |
| Performance |
Maximum driving speed (km/h) |
92 |
| Fuel consumption (1/100 km) |
35 |

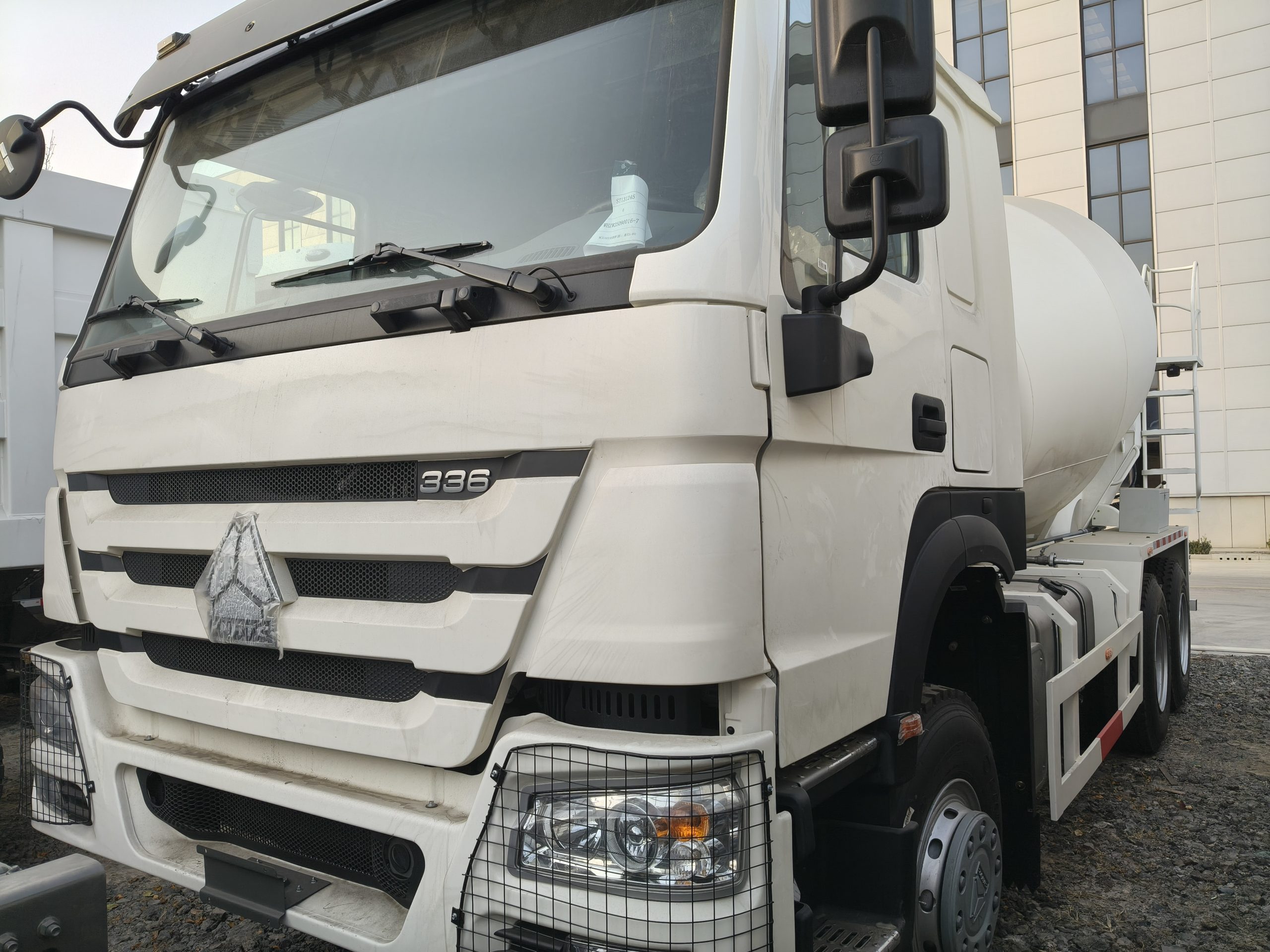

| Cab |
Model |
SINOTRUK HW76 Lengthen cab |
| single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,right driving,air conditioner |
| Engine |
Model |
WD615.69(Euro II) |
| Type |
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Horsepower |
336 |
| Maximum output Kw/r/min |
247/2200 |
| Maximum torque N.m/r/min |
1350/1300-1600 |
| Bore x Stroke |
126x130mm |
| Valve |
2 |
| Displacement |
9.726L |
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan |
| Transmission |
SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
| I II III IV V VI VII VIII IX X |
| 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1 |
| R1-13.91 R2-3.18 |
| Steering |
ZF8098 Steering Gear Box ,hydraulic steering with power assistance.(Right hand driving) |
| Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Front Axle |
SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. |
| Rear Axles |
SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
| Brake System |
Service brake:dual circuit compressed air brake |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
| Wheels & Tyres |
Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. |
| Electrics |
Operating voltage:24V,negative grounded |
| Starter:24V,7.5 Kw |
| Alternator:3-phase,28V,1500 W |
| Batteries:2×12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light. |
| Oil Tank |
Square type-400L Aluminum alloy fuel tank |
