| Model |

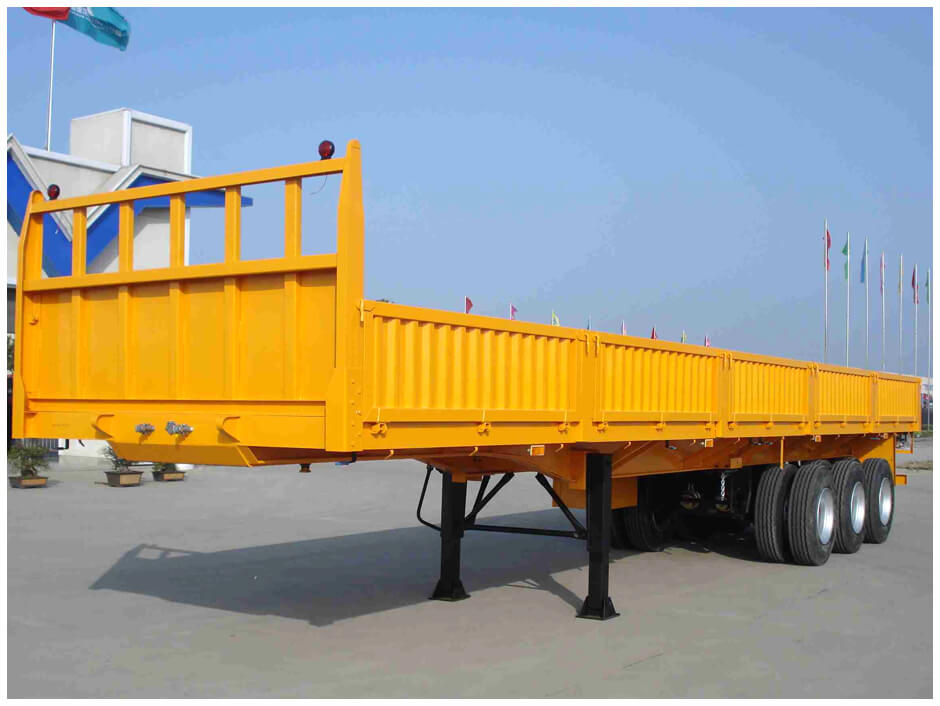

Sidewall Semi Trailer |
| Dimension |
12500 x 2500 x 3100mm |
| Curb Weight |
10Tons |
| Loading Capacity |
60 Tons |
| Cargo Body |
Sidewall removable, height 800mm; Plateform 3mm, checkered |
| Twist Lock |
8 sets, suitable to accept 2×20 or 1×40 container, Manual operation |
| Kingpin |
JOST 2.0 / 3.5 Inch |
| Landing Gear |
JOST 28 Tons |
| Main Beam |
Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
| Side Beam |
18mm steel channel |
| Suspension |
America type mechanical suspension |
| Spring Leaf |
90mm x 13mm x 10 layers |
| Axles |
FUWA Brand, 13Tons or 16Tons |
| Tires |
12.00R20 or 315/80R22.5 |
| Brake Chamber |
T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
| Electrical |
24V |
| Tool Box |
1000 x 500 x 500 mm |
