| Name |

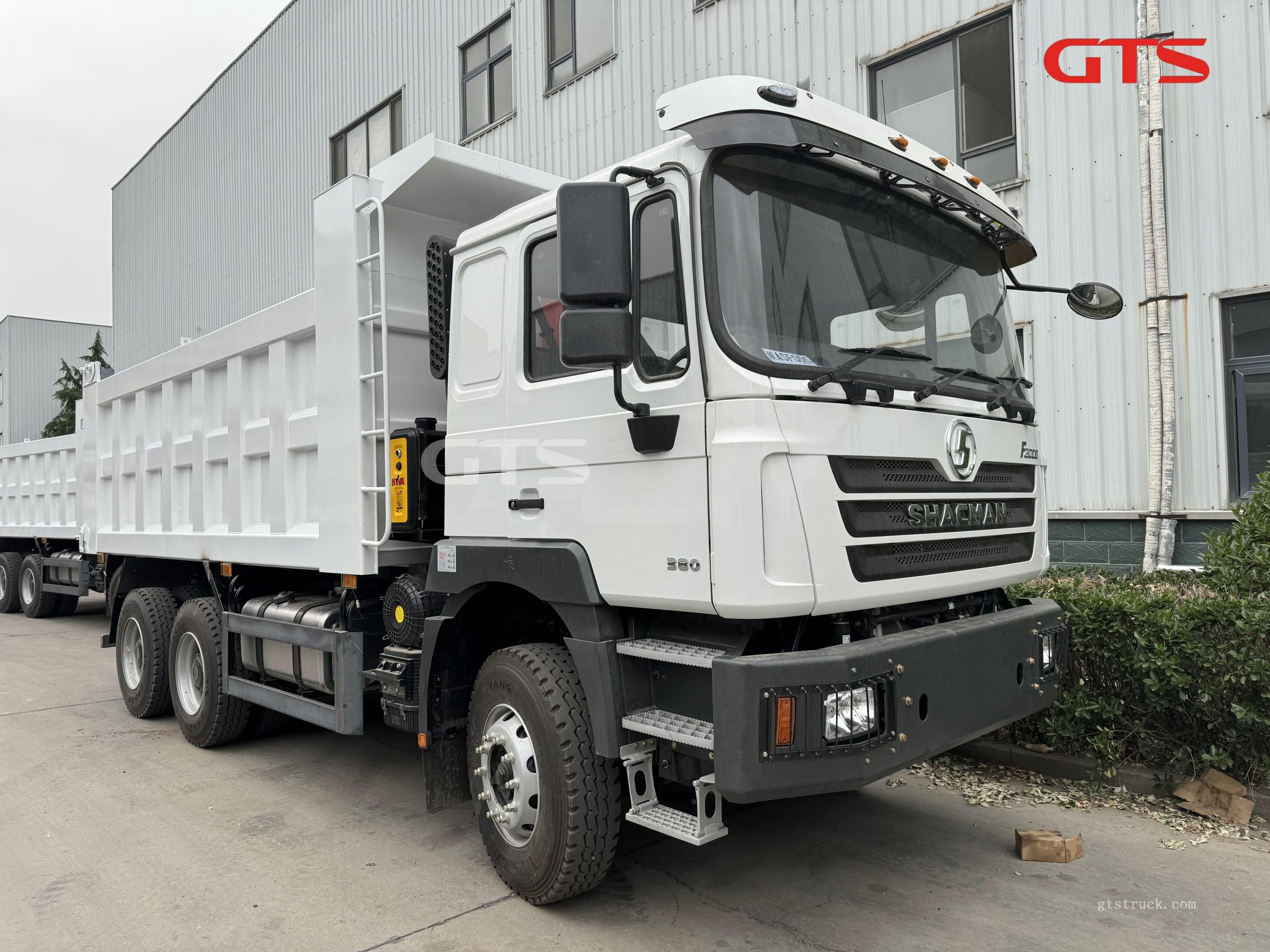

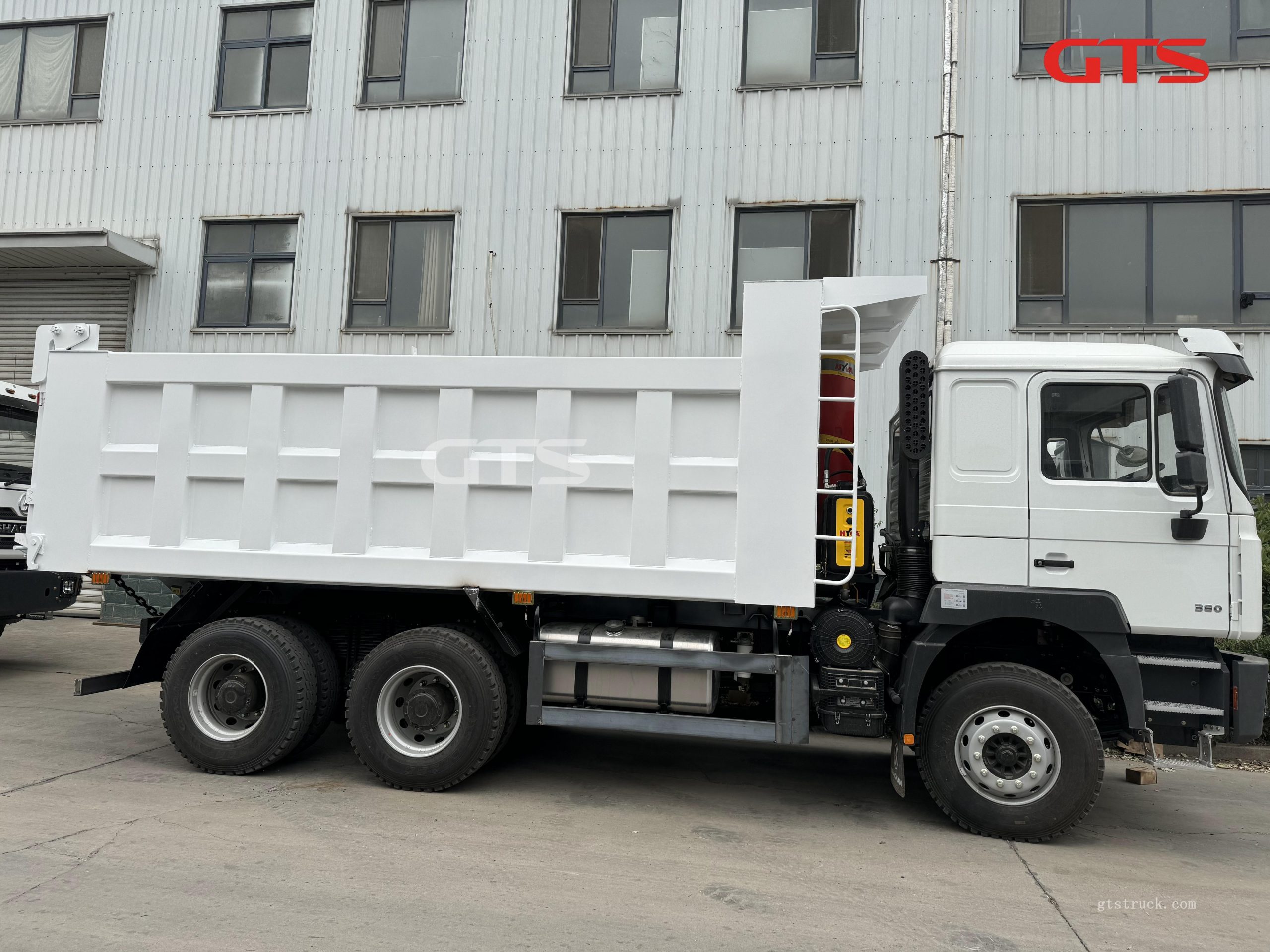

F3000 Dump Truck |
| Drive Type |
6×4 |
| Curb Weight(kg) |
12800 |
| Rated Payload(kg) |
27200 |
| Gross Vehicle Weight(kg) |
40000 |
| Maximum Speed(km/h): |
85 |
| Dimensions(mm) |
8600×2500×3600 |
| Wheelbase(mm): |
3800+1400/3975+1400 |
| Front/Rear Overhang(mm) |
1520/1705 |
| Track Width(mm) |
1939/1800 |
| Engine Model |
Weichai WP10.380E22 diesel engine is 38hp and meets Euro II emission standards |
| Rated Output Power |
279 KW |
| Torque(N·m/rpm) |
1600/1200-1600 |
| Displacement(L) |
9.726 |
| Fuel Tank Capacity |
400 |
| Tires |
11R22.5 tubeless tires |
| Clutch |
φ430 diaphragm spring clutch |
| Transmission |
10JSD180 manual transmission, 10 forward gears + 2 reverse gears |
| Front Axle |
MAN 9.5-ton front axle |
| Drive Axle |
STR 16-ton × 2 axles, speed ratio 5.92 |
| Steering System |
ZF technology (left-hand drive) |
| Braking System |
Dual-circuit air brake + exhaust brake, equipped with ABS anti-lock braking system; the parking brake is spring-loaded |
| Cabin |
Delong F3000 series cab features a four-point hydraulic suspension system plus a hydraulic suspension seat, a standard single sleeper berth, and air conditioning |
| Cargo Box Dimensions (mm) |
5600×2300×1500, floor 8 mm, side panels 6 mm |
| Lifting type |
Mid-mounted / front-mounted lift option |
