Total Volume:59.71CBM Tires :11.00R22.5 Axles :3 axle Pay Load :25000KGS

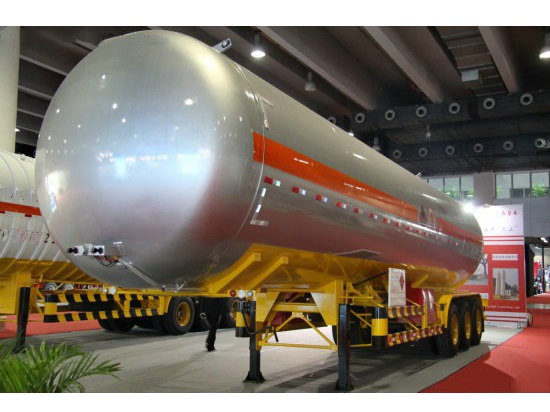

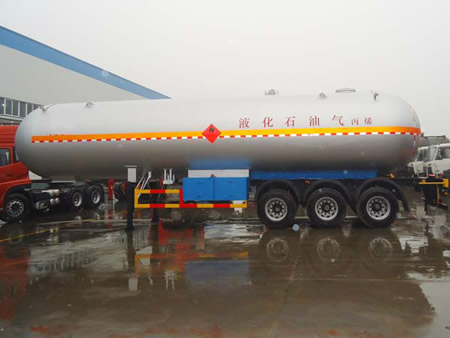

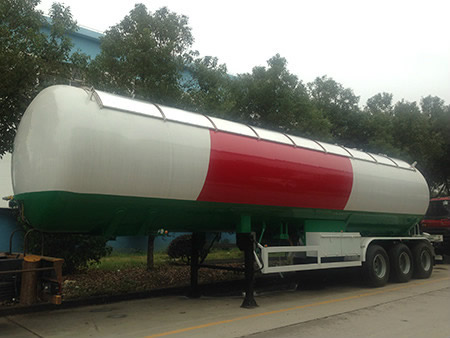

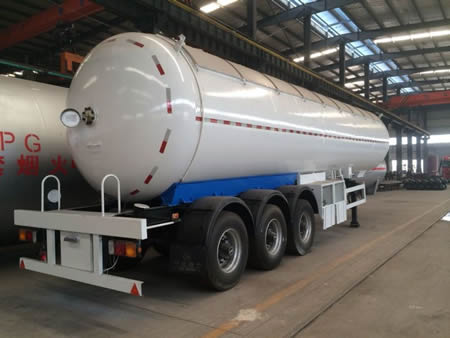

| Model | LPG Tanker Semi Trailer |
| Tare Weight | 11500KGS |
| Pay Load | 25000KGS |
| Overall Width | 2500mm |
| Overall Length | 13000mm |
| Transporting Media | Dimethylmethane, Liquid Ammonia, Liquid CO2, LPG,Butane, Prapane |
| Shape | Tank body is long-cylinder, and the end is semicircle. |
| Total Volume | 59.71CBM |
| Manhole cover | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve |
| Unloading valve | 2-3 sets of DN80 fixed at button of Tank |
| Pipeline | 4”seamless steel tube/Q235 |
| Labeling system | Oil Type Indication |
| Axles |
3 axle ,FUWA/HUAJING/BPW Brand
|
| Tires | 11.00R22.5 tubeless tire with one spare tire |
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear or China Brand 28T |
| King Pin | JOST 2”standard bolt-in king pin |
| Suspension | mechanical suspension |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Wheel rim | 8.25R22.5 wheel rim |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
