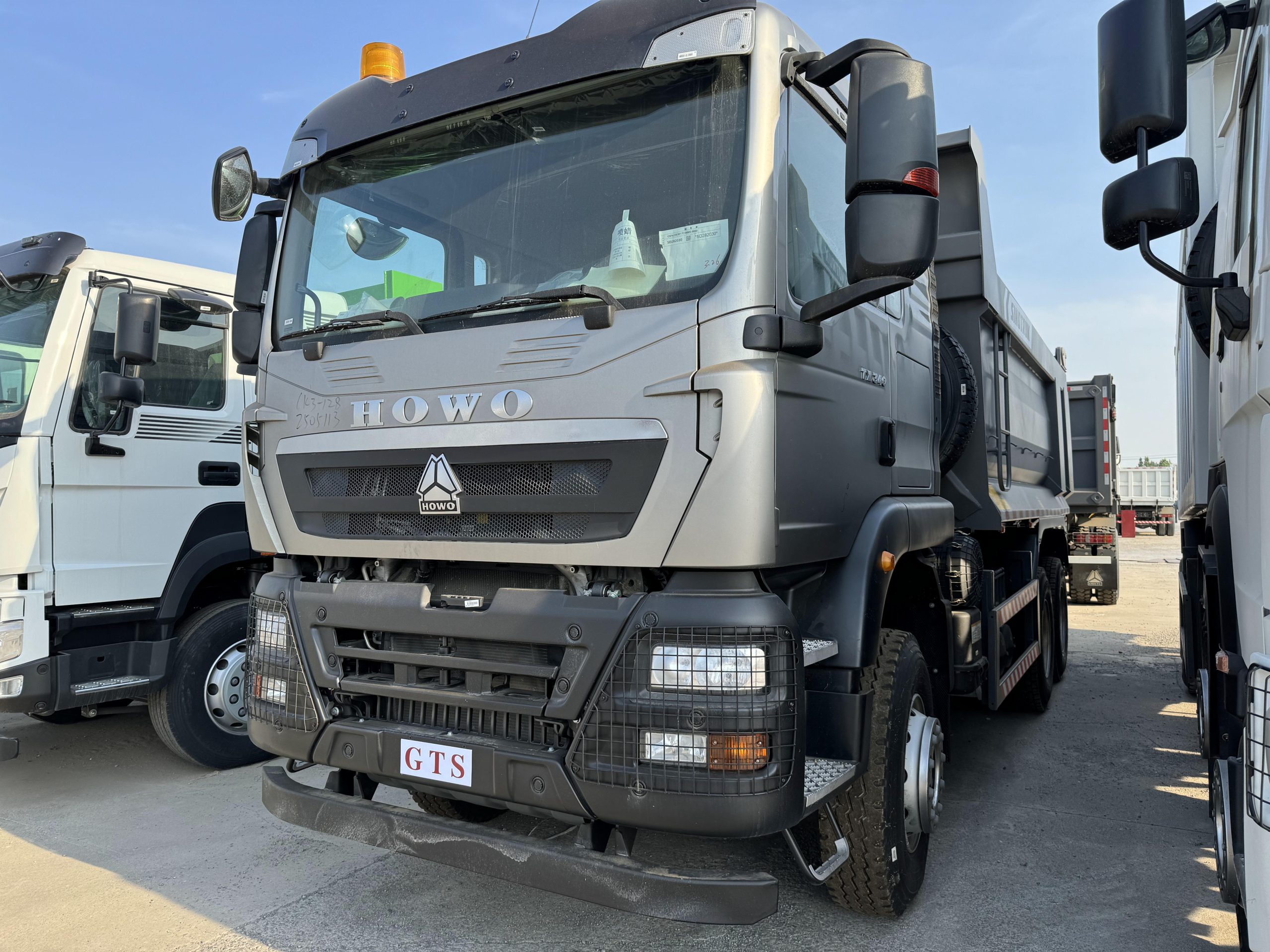

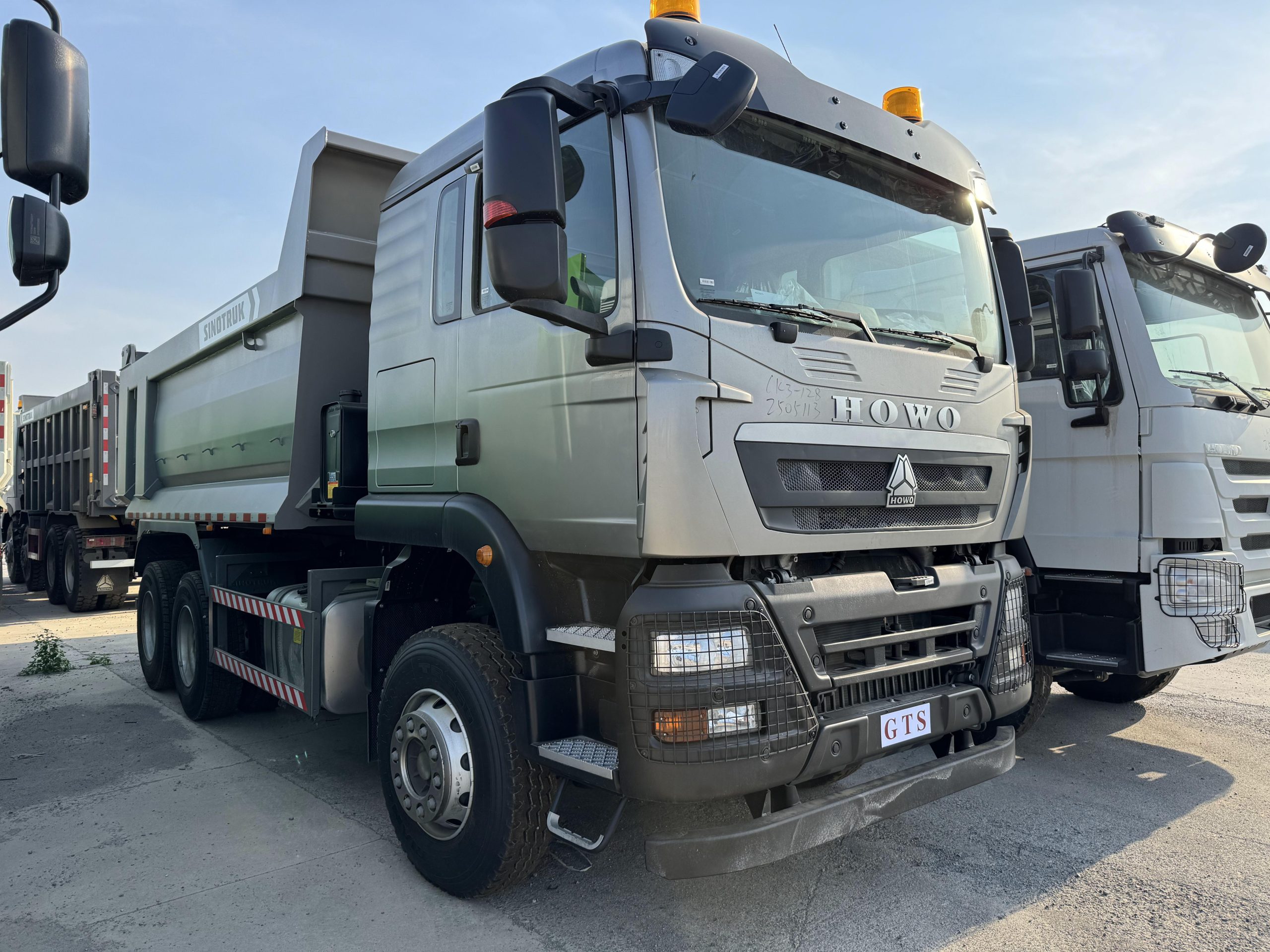

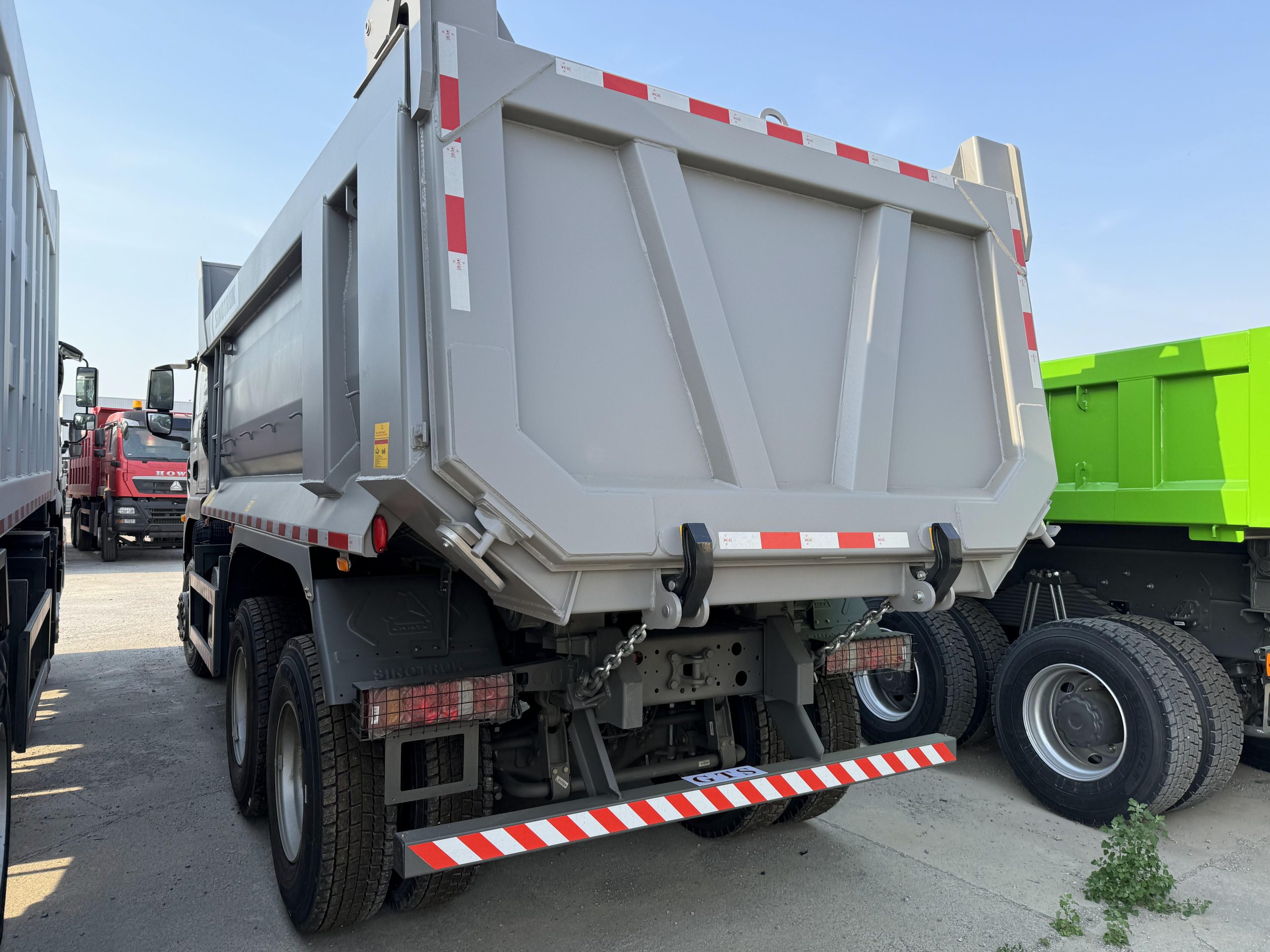

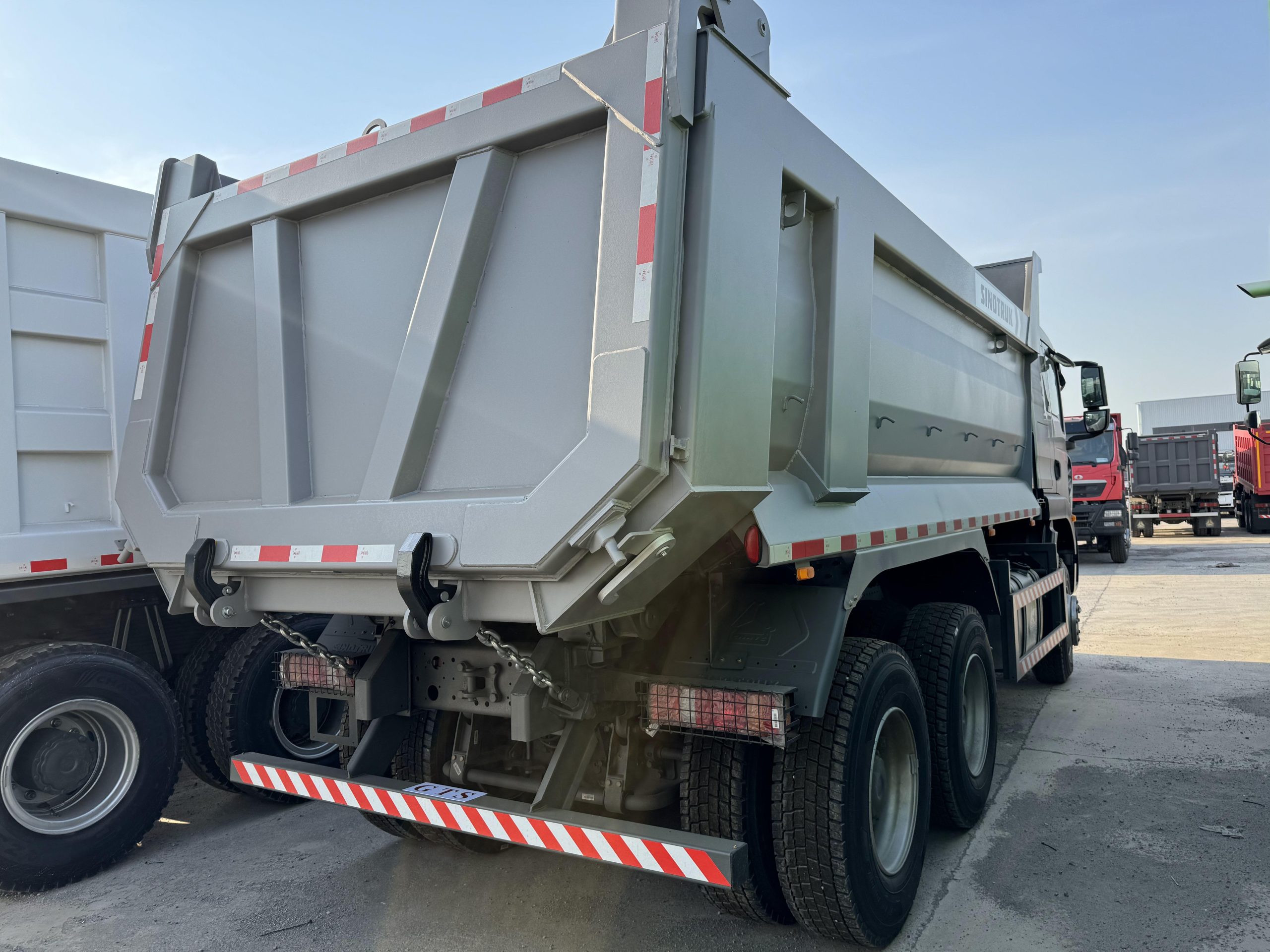

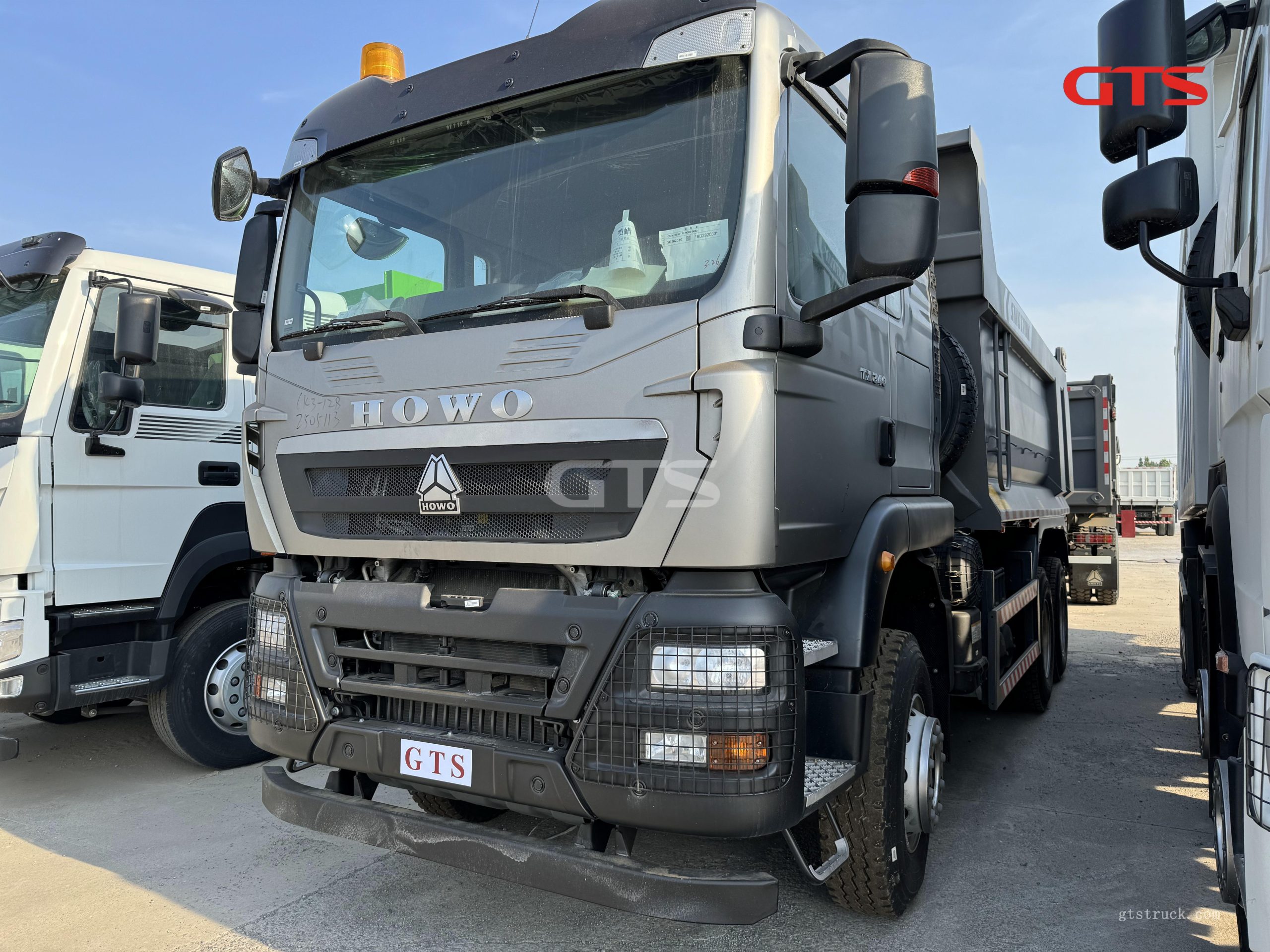

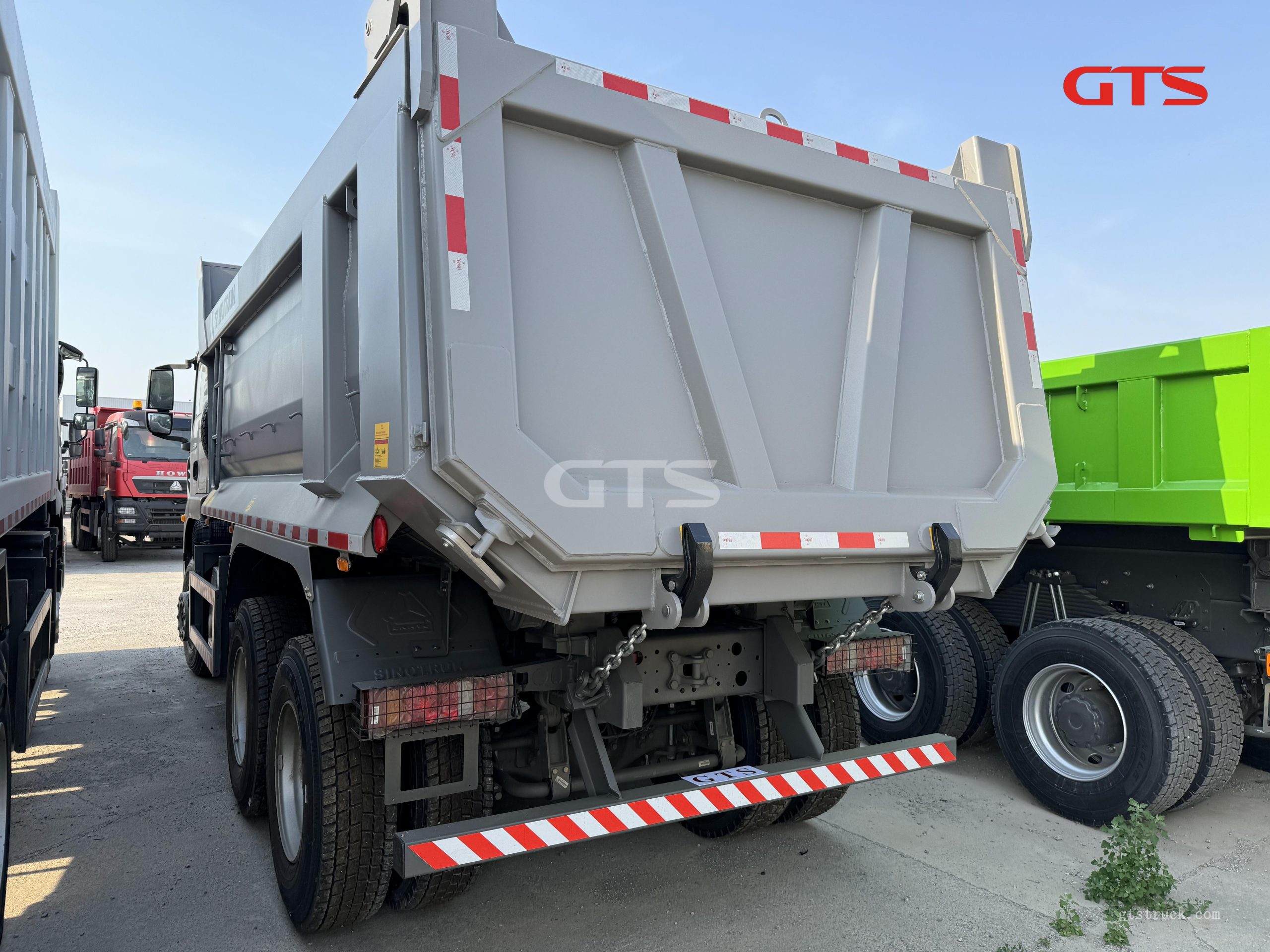

HOWO TX400 6X4 Dump Truck

Vehicle Dimensions(mm) 8995×2550×3400mm
Curb Weight(kg) 12480
Loading Weight(kg) 12520
Drive Type 6×4
Fuel Tank Capacity(L) 400
Engine Model WP10H400E62
Horsepower 400HP
Transmission HW15710
Emission standard Euro II
Name HOWO TX 6X4 Dump Truck
Model ZZ3257V384GD1
Drive Type 6×4
Curb Weight(kg) 12480
Rated Payload(kg) 12520
Gross Vehicle Weight(kg) 25000
Dimensions(mm) 8995×2550×3400mm
Wheelbase(mm): 3800mm + 1350mm
Front/Rear Overhang(mm) 1430/2450
Engine Model WP10H400E62
Rated Output Power 294 kW
Torque(N·m/rpm) 1900 N·m@1200-1300rpm
Displacement(L) 9.5
Fuel Tank Capacity 400
Tires 12R22.5 18PR
Transmission HW15710
Front Axle VPD75 small drop front axle (disc brake)
Drive Axle MAT16ZG self-adjusting arm dual rear axle (drum brake)
Cabin HOWO TX-F row half cab (with sleeper)
Tank Dimensions (mm) 6300×2350×1500
