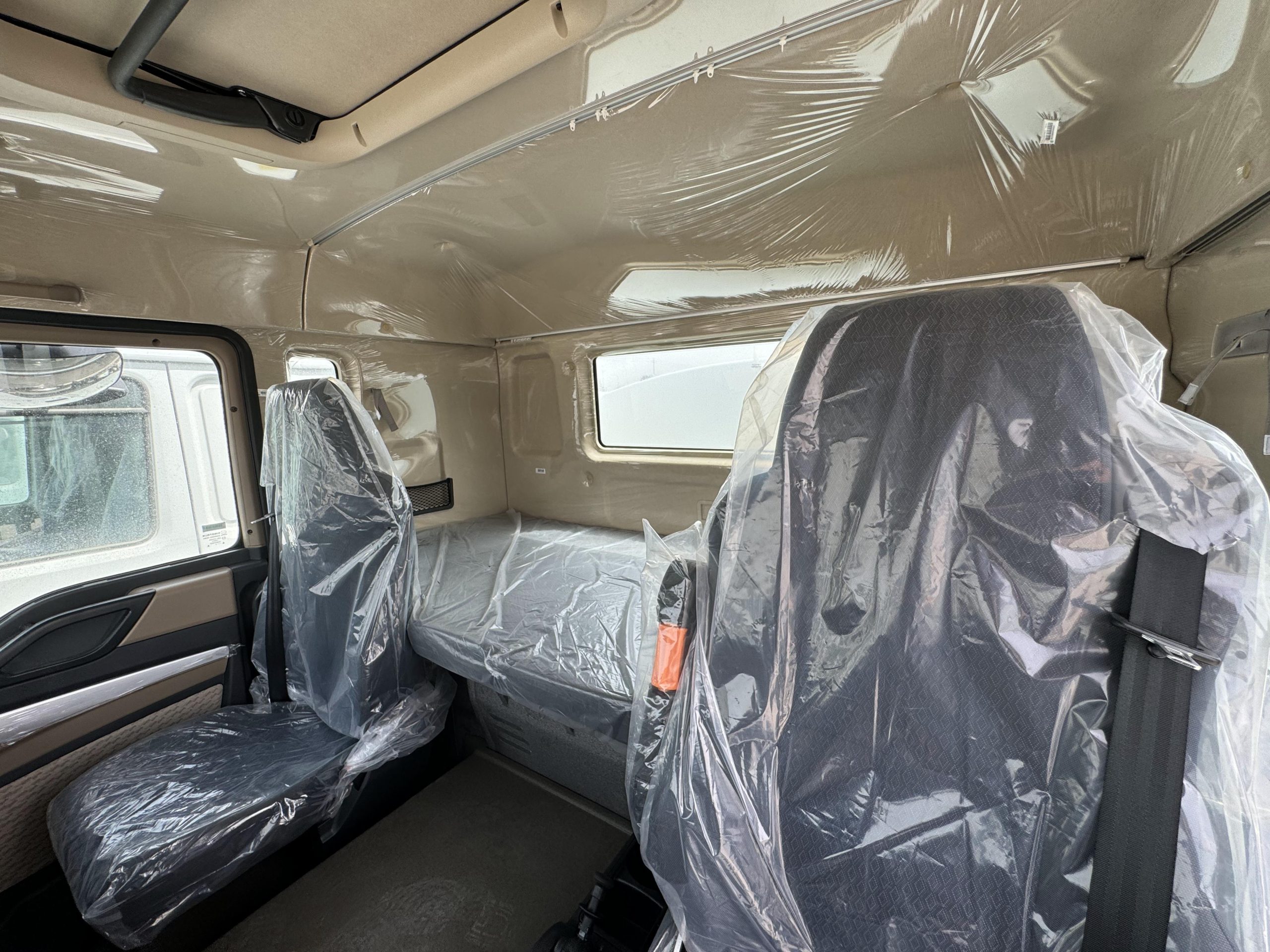

| Cabin |
Driving type 6×4 LHD/RHD |
| Model: ZZ5257M3841B |
| HW76/TX-F-H77L Lengthen cab, single bunk,safety belts,left hand driving,air conditioner. |
| Overall Dimensions |
8800x2496x3215,3800 mm |
| Wheel Base |
3800+1350 mm |
| GVW |
25000kg |
| Front axle loading capacity |
1 x 7000 |
| Rear axles loading capacity |
2 x 16000 |
| Engine |
Brand |
Sinotruk |
| Model |
WD615.87/WP10.38/WP12.40 WD615.47 |
| Type |
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Displacement |
9.726L/12L |
| Bore x Stroke |
126x130mm |
| Horse Power (HP) |
290/380/400/371 |
| Emission standard |
Euro II |
| Max Speed |
102 km/h |
| Tire |
12.00-20, 12.00R20 |
| Transmission |
HW15710 or HW19710 transmission,10 forward & 2 reverse,with PTO |
| Steering |
ZF8098 |
| Oil Tank |
300L |
| Tank Volume |
20 CBM |
| Brake System |
Service brake:dual circuit compressed air brake |
| Parking brake (emergency brake):spring energy, |
| compressed air operating on rear wheels |
| Auxiliary brake:engine exhaust valve brake |
| Electrics |
Operating voltage:24V,negative grounded |
| Batteries:2×12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Option |
Vertical Muffler,ABS,Automatic Break Clearance Adjusting Arm, |
| Traveling Data Recorder,Metal Pipeline,Engine Protective Board |
|
|
|
|
