| Model |
ZZ1257N4347D1B |
| Engine |
Engine model: MC11.44-50, 440HP, Euro IV emission standard |
| Clutch |
SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission |
Transmission, model HW19710+HW70 PTO, 10 forward and 2 reverse |
| Front Axle |
HF9 series, with drum brake system |
| Rear Axle |
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Steering |
ZF8118, hydraulic steering with power assistance |
| Ratio: 22.2-26.2:1 |
| Wheels&Tyres |
12R22.5*13pcs |
| Driver’sCab |

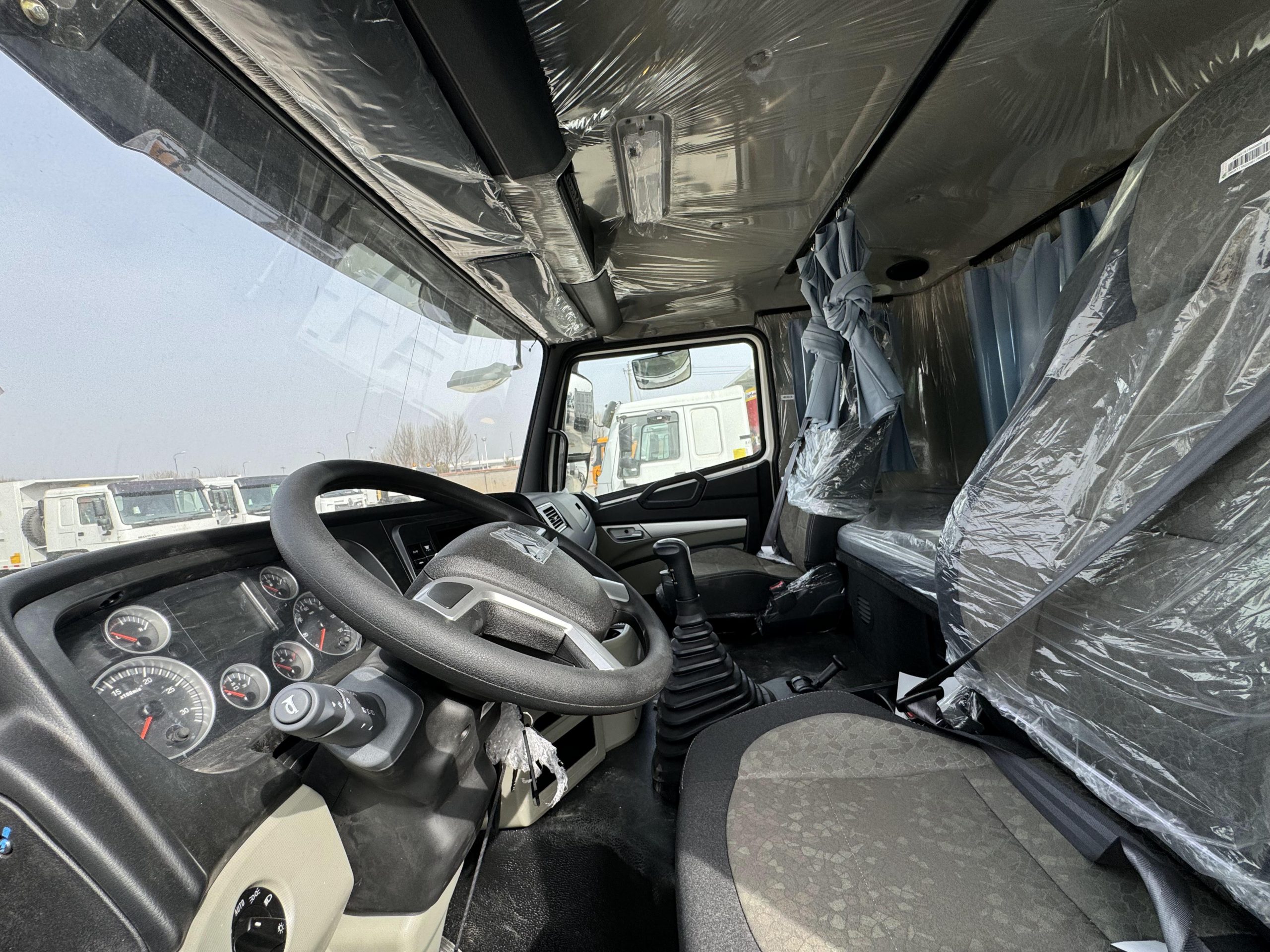

HW76 Cabin, with one sleeper and A/C |
| Dimensions inmm |
4300MM |
| Weight in kg |
Permissible loading capacity (kg):13540 |
| Dead weight (kg):11330 |
| Gross vehicle weight (kg):25000 |
| Front axle loading capacity (kg):9000 |
| Rear axle loading capacity (kg):2*16000 |
| Performance |
Maximum driving speed(km/h):102(reference data) |
| Maximum gradeability (%):62 |
| Minimum ground clearance(mm):314 |
| Minimum turning radius (m):10.8 |
| Fuel consumption(L/100km):36(reference data) |
| WaterTank |
20000Liters |
